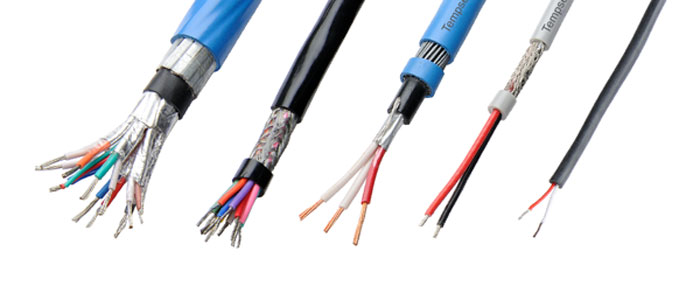

Thermocouple Extension and Compensating Cables are used for connecting thermocouples to control and measurement devices (pyrometers etc.) that may be some distance away from each other in control rooms.

CONSTRUCTION	VOLTAGE GRADE	SIZE	REFERRED STANDARDS
Kx, Jx, Ex, Tx, Type Extension / Kx, Sx, Rx Type Compensating Conductor,XLPE/PVC/HR PVC/LSOH/LDPE Insulated, Armored/Unarmored Bare Cu/ Tinned Cu, PVC/HR PVC/LSZH/HDPE Inner & Outer Sheath, Tape Braiding,individual/ Overall AL Mylar/Copper Tape/Copper Braid Screening	300 / 500 / 1100 Volts	12 AWG/ 16 AWG/ 20 AWG - up to 100 pairs and as per client's requirement	EIL SPEC:6-52-46, ANSI:MC-96.1, ENI-163.00, IS:8784, BS:7655



CONFIGURATION

As per Cable Codes KX, KK (A), JX, TX, EX, SX/RX, BX. 16, 18 & 20 AWG, other conductor sizes on request.

CONDUCTOR

Stranded aluminium conductor

INSULATION

PVC or HR PVC.

SCREENING

Individual or overall Aluminium Mylar tape screened with ATC Drain wire.

RIPCORD

For easy removal of sheath.

ARMOURING

GI, Round Wire or Flat Strips.

INNER AND OUTER SHEATH

PVC, PVC HR, PVC FRLS or PVC FR.
